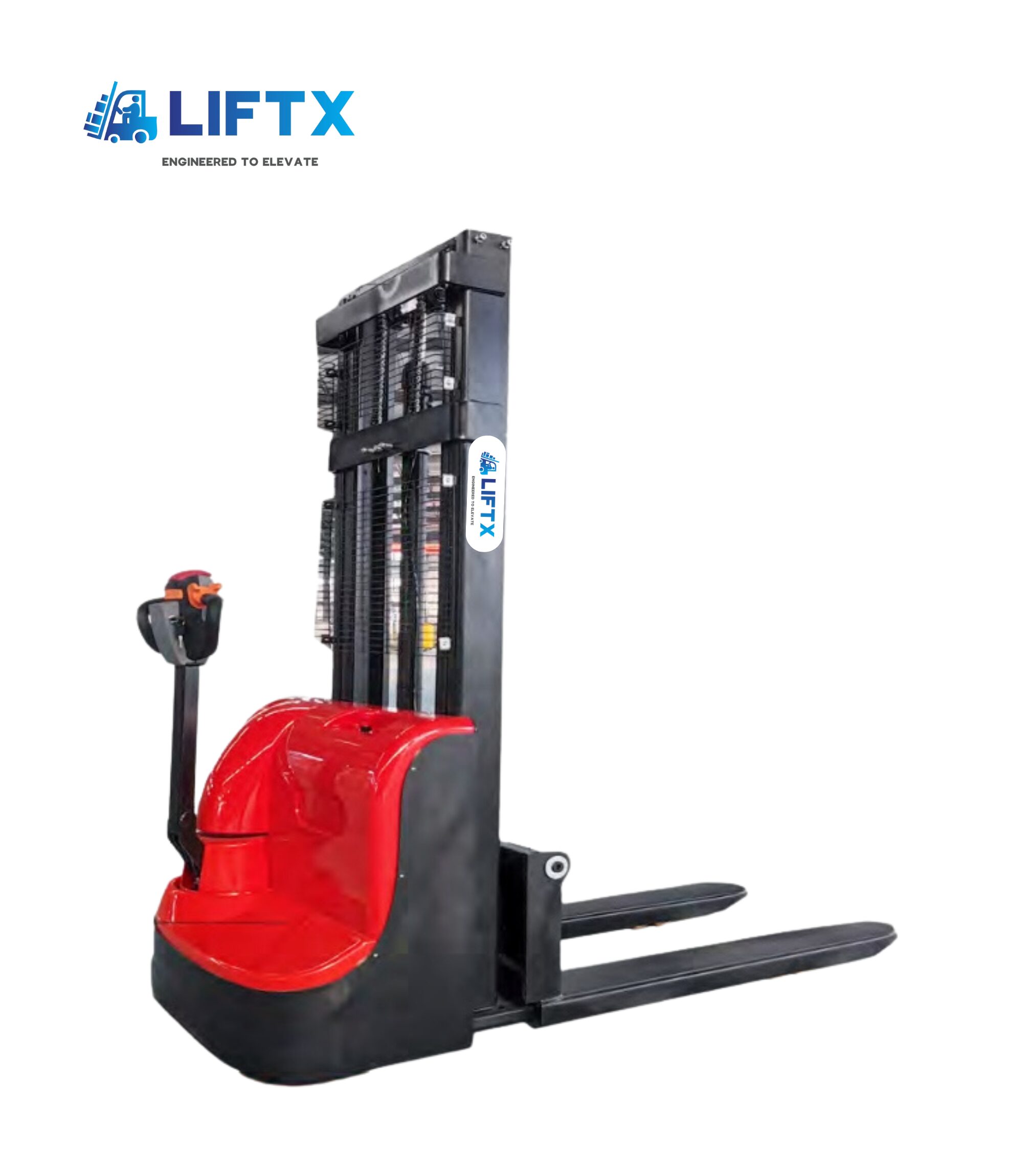

LIFTX Walkie Pallet Stacker (HTB15E / HTB20E)

LIFTX Walkie Pallet Stacker (HTB15E / HTB20E)

Description

  • Brand: LIFTX
  • Power Type: Battery
  • Rated Load Capacity: 1500 kg
  • Load Center Distance: 500 mm
  • Operation Type: Walkie
  • Total Length: 1720 mm
  • Total Width: 822 mm
  • Mast Closed Height: 2080 mm
  • Lifting Height: 3000 mm
  • Max Extended Height: 3580 mm
  • Fork Length: 1070 / 1200 mm
  • Fork Ground Clearance: 85 mm
  • Min Turning Radius: 1431 mm
  • Fork Size (L×W×H): 1150 × 170 × 60 mm
  • Fork Outer Width: 550 / 680 mm
  • Handle Height (Max/Min): 1230 / 750 mm
  • Max Lifting Speed (No Load): 180 mm/s
  • Max Lifting Speed (Full Load): 120 mm/s
  • Max Driving Speed (No Load): 5.0 km/h
  • Max Driving Speed (Full Load): 4.0 km/h
  • Gradeability (No Load): 3.0%
  • Driving Motor: DC 0.75 kW
  • Lifting Motor: DC 2.2 kW
  • Total Weight (Battery Included):
  • Battery Capacity: 24V 80Ah
  • Charger: 24V 15A
  • Front Wheel Size: 80 × 70 mm
  • Rear Wheel Size: 125 × 50 mm
  • Controller: Chinese Brand
  • Service Brake: Electromagnetic
PRODUCT OVERVIEW

The LIFTX Walkie Pallet Stacker is a high-performance electric material handling solution designed for efficient lifting and stacking operations in warehouses, factories, and distribution centers. Engineered with precision and durability, this stacker delivers reliable performance while ensuring operator comfort and safety.

Featuring a C-shaped steel high-performance mast, the stacker provides excellent stability and enhanced load visibility during operation. Its side-driving design allows for a smaller turning radius, making it ideal for narrow aisles and confined spaces.

The ergonomic control handle ensures smooth and effortless operation, while the thickened PU wheels offer superior durability, reduced noise, and smooth movement across different floor surfaces. Powered by a 24V battery system, this walkie stacker is built for consistent performance and long operational hours, with an optional lithium battery upgrade available.

Whether for light-duty or medium-duty applications, LIFTX ensures efficiency, durability, and ease of use in every operation.
